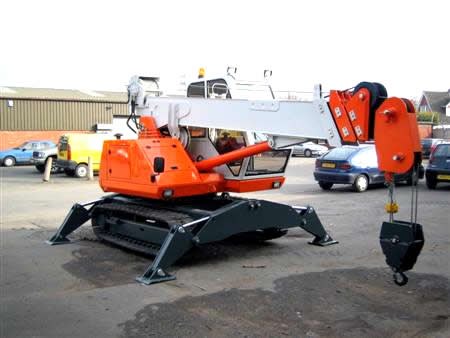

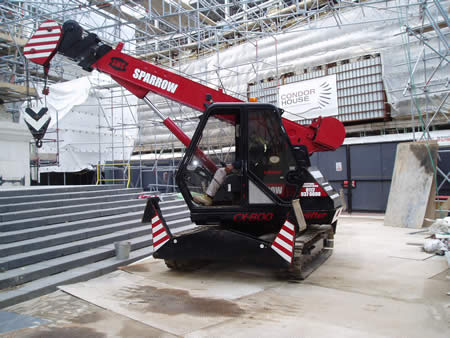

STARLIFTER CX-8T CRANE
The CX-8T Starlifter Crane is the powerful, compact solution to accurate and safe load positioning in civil engineering and other industrial applications, particularly when access and working conditions are restricted.
Mini Crawler Crane used successfully above and below ground and on pontoons and bridges, the highly manoeuvrable rubber tracked CX-8T, with 360 degrees slew and 4 stage telescopic boom, lifts 8 tonnes, yet occupies a footprint of only 3.48 x 3.48 metres.
STARLIFTER CRANES AT WORK

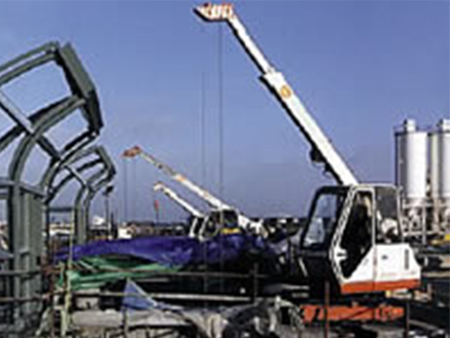

CX-3T Air-lifted onto sluice gate headings for Shuttering and Formwork duties at Cardiff Barrage

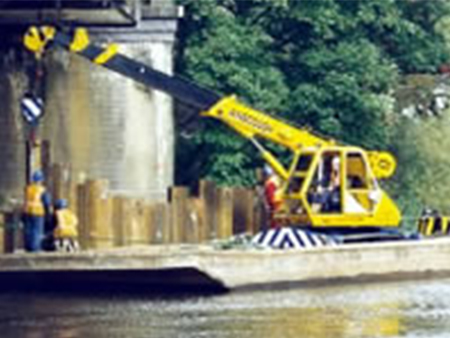

CX-8T Afloat on the River Avon, a Starlifter CX-8T works installing Interlocking sheet piling under the low bridge on the London to East Coast railway bridge

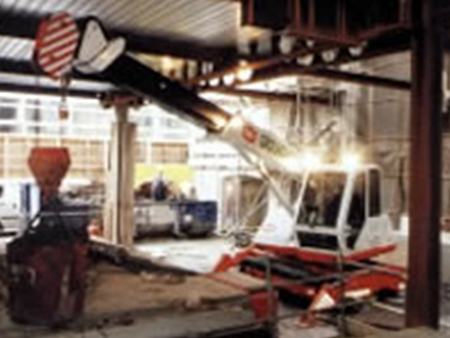

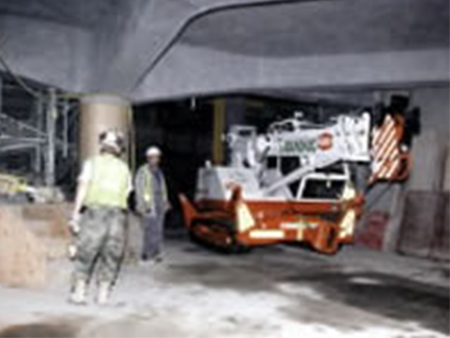

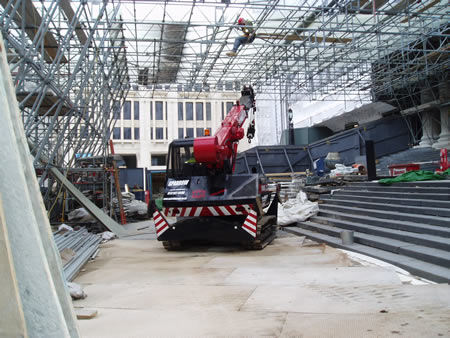

CX-8T Low Headroom operations

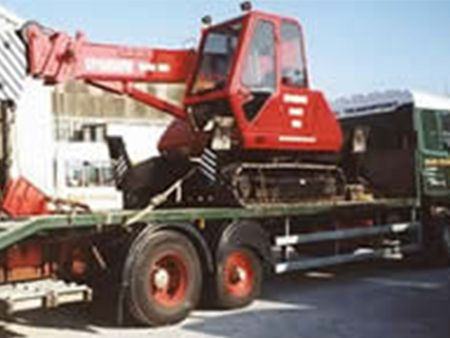

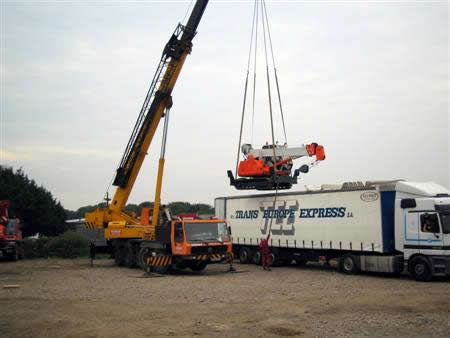

CX-8T Quick dispatch by truck

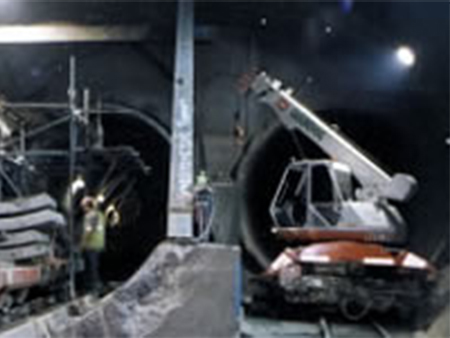

CX-8T Working Underground on the Heathrow Express project lifting 1 Tonne tunnel segments into position at a radius of 6.5m with boom at 10m, from adjacent rail position

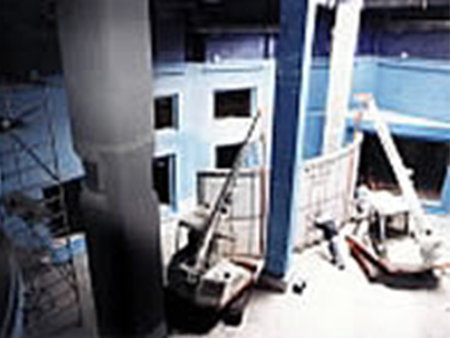

CX-3T Two Starlifter's manoeuvre 3.5 tonne acrylic panels into position providing safe viewing windows for tourists visiting new aquaria in the basement at London’s old County Hall

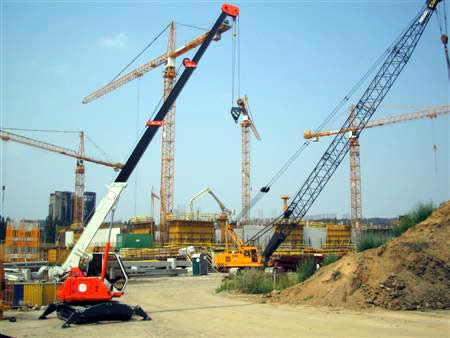

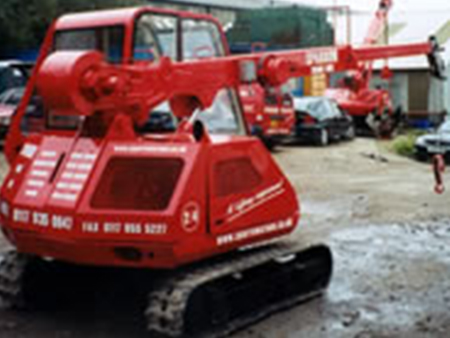

Rough Terrain operations.
Low Headroom operations.
SPECIFICATIONS
| Operating Weight | |
| Cabin, steel tracks/rubber shoes - 9030kg | |
|
Engines
|
|
| Kubota V2003T turbocharged water cooled engine 41.8kW @ 2800 rpm (56bhp) | |
|
Electrics
|
|
| 12 Volt system | |
|
Hydraulic System
|
|
| Pump - Tandem Load sensing variable displacement, max. flow 140 litres/min, max. pressure 280 bar. | |
| Track Motors - Two speed axial piston motor gearbox + cross line relief + fail to safe park brake | |
| Slew Motor - Axial piston motor/gearbox + crossline relief + fail to safe park brake | |
| Winch Motor - Gear motor/gearbox + overcentre + automatic fail to safe break | |
| Derricking Ram - 125mm (5") double acting + built-in dual overcentre valve | |
| Telescoping Ram - 2 x 80mm (3.14") Double acting and built-in dual overcentre valves | |
| Hydraulic Power Take Off (PTO) - (Optional) 29 1/m@ 140bar (7.6 US galls/min @ 2060 psi) | |
| Stabilisers - 4 x 100mm (4") | |
| Rams - Double acting + dual Pilot operated checks | |
| Filtration - 10 microns absolute return line filter | |
|
Controls
|
|
| Electric-hydraulic proportional | |
| Double acting circuits | |
| 2 x 4 way joystick control for derrick, telescope, winch and slew | |
| Hand lever control for tracks | |
| Interchanging with boom and winch control 4 x switch control for stabiliser legs | |
|
Safety Devices
|
|
| Full safe load indicator, A2B block to block control | |
| Winch wire out cutout | |
| Armchair lever control cutout on operator entry/exit | |
| Mechanical slew lock pin (operated from within cab) | |
| Total moment cutout limiter available (optional) | |
| Safety valves throughout all lift functions and fail to safe brakes | |
|

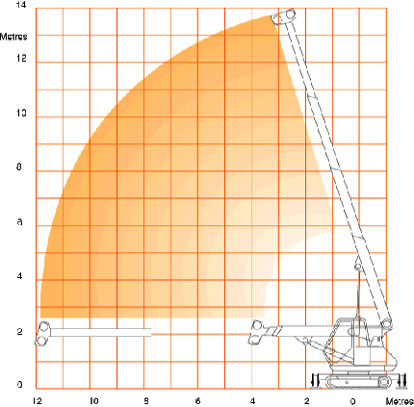

Performance Data - Boom
|
|
| See full load chart in operators manual for complete range of duties | |
| Boom - retracted - 4350mm (14' 3") | |
| Boom - extended - 12600mm (41' 4") | |
| 4 stage boom, 2 stages - hydraulic cylinder operated, 1 stage - wire rope operated | |
| Maximum height under hook 12.5 metres | |
| Boom angle - 0-73° | |
| Derricking time - 15 seconds (0-73°) | |
| Up: 20 seconds, Down: 19 seconds | |
| Telescoping time - Out: 37 seconds, In: 34 seconds | |
| Hoisting speed - 40 metres/minute | |
| Wire rope - 110mm x Ø13mm | |
| Wire rope - 48M drop on 2 falls | |
| Wire rope - 24M drop on 4 falls | |
|
Machine Overall Dimensions
|
|
| Width 2235mm, Length 5680mm, Height 2550mm | |
| Tail Rad. 1560mm, Legs deployed footprint 3480 x 3480mm | |
|
Slew
|
|
| Continuous 360° at 3.0 RPM | |
|
Gradability
|
|
| 32 degrees - (58%) | |
|
Travel Speed
|
|
| 0 - 4 k/h | |
|
Track Equipment
|
|
|
|
Standard specification - Steel tracks with bonded rubber shoes 135mm pitch |
| 12 bottom rollers (6 per side) | |
| 2 top rollers (1 per side) | |
| Shoe width 400mm (16") | |
| Ground Length 1925mm (6'4") | |
| Ground Pressure 0.58 KG/CM2 (8.35lbs/in2) | |
|
Instruments
|
|
| Gauges for water temperature, engine oil pressure, warning lights for hydraulic filter bypass, hourmeter, machine levelling indicator, safe load indicator | |
|
Fuel Tank Capacity
|
|
| 95 litres (25.0 US galls) | |
|
Hydraulic Reservoir
|
|
| 160 litres (42.3 US galls) | |
|
Optional Equipment
|
|
| Cab air conditioning | |
| Steel track undercarriage | |
| All rubber track | |
| Dual fail to safe on winch | |
| Fly jib 5.0m (16'4") | |
| N.B. All non metric dimensions, areas, volumes, pressures and weights are approximations only. | |
| Working Radius Metres | Boom Length 4.5 metre | Boom Length 7.2 metre | Boom Length 9.9 metre | Boom Length 12.6 metre | |||||
| Static | Travel | Static | Travel | Static | Travel | Static | Travel | ||
| 2.0 | 8.0 | 2.7 | 6.0 | 1.7 | - | - | - | - | |
| 3.0 | 5.0 | 1.3 | 5.0 | 1.4 | 5.0 | 1.1 | - | - | |
| 4.0 | 4.2 | 1.1 | 3.5 | 1.0 | 3.75 | 1.0 | 3.0 | 0.7 | |
| 5.0 | - | - | 2.5 | 0.7 | 2.5 | 0.7 | 2.4 | 0.67 | |
| 6.0 | - | - | 1.75 | 0.55 | 2.0 | 0.6 | 2.0 | 0.6 | |
| 7.0 | - | - | - | - | 1.4 | 0.5 | 1.6 | 0.5 | |
| 8.0 | - | - | - | - | 1.0 | 0.28 | 1.0 | 0.39 | |
| 9.0 | - | - | - | - | 0.75 | 0.2 | 0.8 | 0.3 | |
| 10.0 | - | - | - | - | - | - | 0.55 | 0.15 | |
| 11.0 | - | - | - | - | - | - | 0.45 | 0.1 | |
| 12.0 | - | - | - | - | - | - | 0.36 | 0..08 | |
| Working Radius Metres | Boom Length 9.5 metre Static | Boom Length 12.2 metre Static | Boom Length 14.9 metre Static | Boom Length 17.6 metre Static |
| 2.2 | 1.2 | - | - | - |
| 4.5 | 1.2 | 1.2 | 1.2 | 1.2 |
| 6.0 | 1.12 | 1.12 | 1.12 | 1.12 |
| 8.0 | 0.83 | 0.83 | 0.83 | 0.83 |
| 11.0 | - | 0.61 | 0.61 | 0.61 |
| 13.0 | - | - | 0.38 | 0.38 |
| 15.5 | - | - | - | 0.14 |
