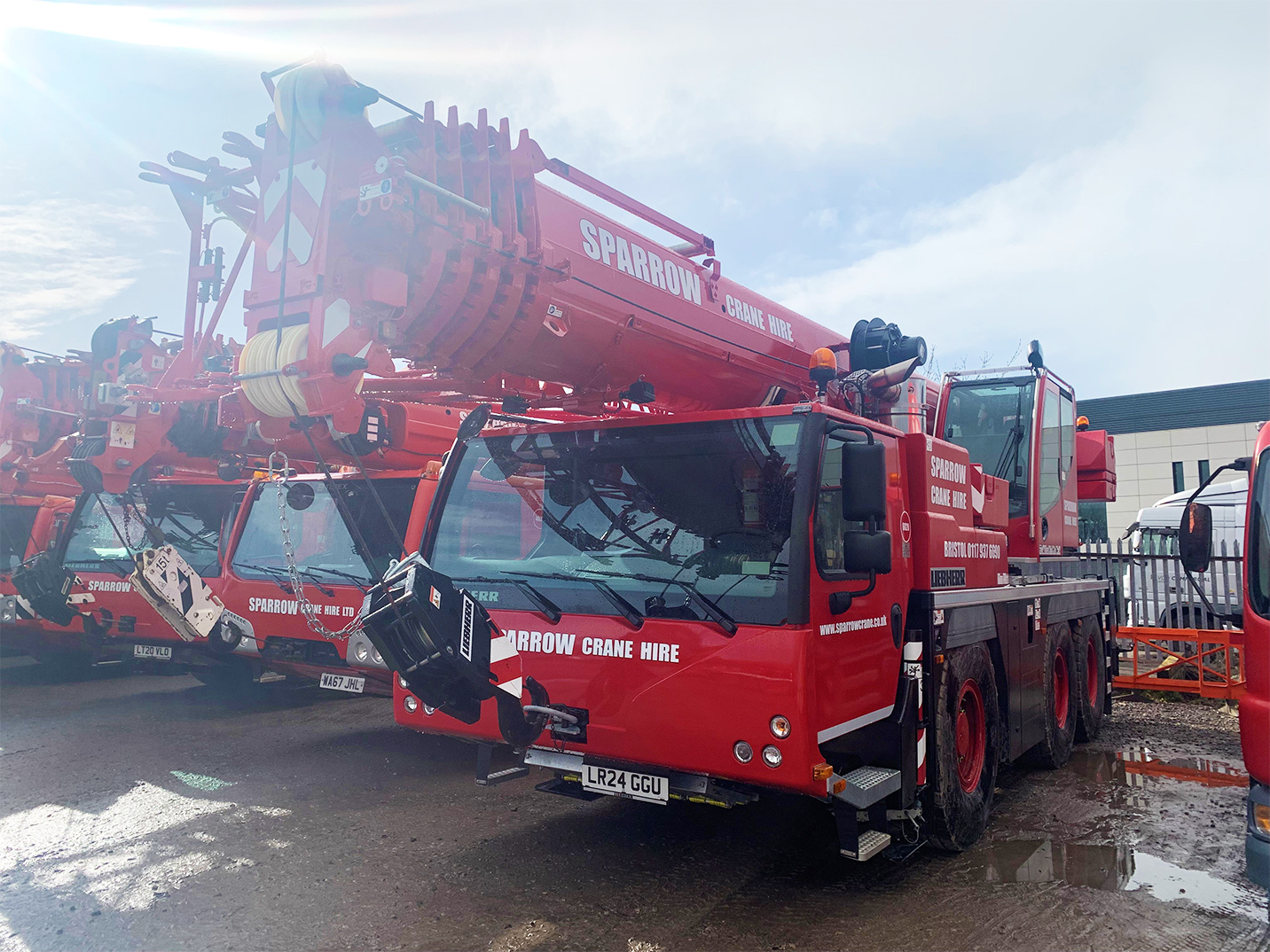

Liebherr LTM1060-3.1
The Liebherr LTM1060-3.1 has particularly high load capacities and long boom systems. The crane features a special ballast plate configuration to enable it to handle a very wide range of driving conditions. With the ballast being divided into slabs within the design means it can achieve the different driving configurations easily and quickly. It is also economical to use due to the time-tested ECOmode and ECOdrive and safe due to the latest chassis technology combined with compact dimensions.
Liebherr LTM1060-3.1 MOBILE CRANE
■ Max. load capacity 60 t
■ Telescopic boom 48 metres
■ Max. hoist height 63 m
■ Max. radius 48 m
■ Number of axles 3
■ Suspension hydraulic
■ All Terrain
■ Drive engine/make Liebherr
■ Drive engine 6-Zylinder-Diesel
■ Drive/Steering standard 6 x 4 x 6
Hire your The Liebherr LTM1060-3.1 All Terrain Crane today
You can hire The Liebherr LTM1060-3.1 All Terrain Crane with or without an operator. We will guide you through all the paperwork and help you make the right choice.
All our machines are regularly serviced so you can trust that your Liebherr LTM1060-3.1 All Terrain Crane will be up to the task.
See our Case Study :- An AC & Ventilation Crane Lift in Bristol
See our news item :- Steel frame installation in Bristol
See our Case Study :- Infrastructure project of the decommissioning of a 24 metre internet tower
See our news item :- Crane tree removal in Cleeve Hill, Cheltenham
See our news item :- Liebherr LTM1060-3.1 in Marlborough showing what an excellent machine they are
See our news item :- Glass Lifting At The Holiday Inn, Bristol
See our news item :- Glastonbury Festival 2023 Stages & The Iconic Spider Assembly
See our news item :- Gok Wan at Camp Bestival 2023 a heartfelt performance
See our news item :- Another new Liebherr LTM1060-3.1 joins the growing fleet
See our news item :- One of our Liebherr LTM1060-3.1’s working in Truro
SPECIFICATIONS
Max. load capacity 60 t at radius 2.10 m
Telescopic Boom
Telescopic boom from 10.30 m
Telescopic boom up to 48.00 m
1 base section and 5 telescopic sections. All telescopic sections extendable hydraulically and independently from one another. Rapid-cycle telescoping system TELEMATIK. Boom length: 10.3 m – 48 m.
Operating modes
Lattice jib from 2.5 m
Lattice jib up to 16.0 m
Single folding jib, 9.5 m
Double swing-away jib 9.5 m – 16 m Adjustment 0°, 20°, 40°
Assembly jib 2.5 m with steel cable pulleys.
Hoist gear
Axial piston fixed displacement motor, hoist drum with integrated planetary gear and spring-loaded static brake, actuation by open regulated oil circuit.
Outriggers
4-point supporting system, hydraulically telescopable into horizontal and vertical direction. Operation with remote control, automatic support leveling, electronic inclination display.
Suspension
All axles with hydropneumatic suspension and hydraulic locking facility.
Cab
Spacious corrosion resistant with comfort furnishings, mounted on rubber shock absorbers, safety glazing.
Slewing gear
Axial piston fixed displacement motor, planetary gear, spring-loaded static brake. Slewing gear invertible from released to locked as a standard feature.
Engine
6-cylinder Diesel, make Liebherr, watercooled, output 270 kW (367 h.p.), max. torque 1965 Nm. Exhaust emissions acc. to (EU) 2016/1628, EPA/CARB or ECE-R.96. Fuel reservoir: 350 l.
Brake
Service brake: all-wheel servo-air brake, all axles are equipped with disc brakes, dual circuit. Hand brake: Spring-loaded, acting on all wheels of axles 1, 2 and 3. Sustained-action brake: Exhaust retarder with additional Liebherr braking system.
Steering
2-circuit system with hydraulic servo steering. Active speed de-pending rear axle steering, special steering programs for various driving situations.
Electrical System
Modern data bus technique, 24 Volt DC, 2 batteries of 170 Ah each.
